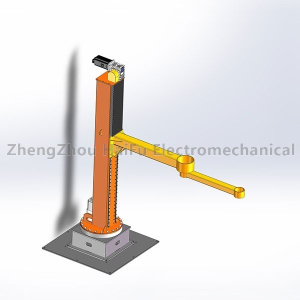

| Column Rotary Palletizing Robot-Crank Arm TypeParameters | |
| Power Supply/Power | 380V±5%, three-phase four-wire |
| Air Supply Usage | Grippers/Clamps: 0.6-0.8 MPa, >0.3m³/min Suction Cups: 0.6-0.8 MPa, 0.97-1.6m³/min; Total Air Storage >400L |
| Dimensions | Total Height 3m, Rotation Coverage Radius 2.5m; Footprint 5×3㎡ |
| Cable Length | 3m (robot body to control cabinet) |
| Max Palletizing Height | ≤1800mm (grippers/clamps); ≤2000mm (suction cups) |
| Applicability | 60kg products, including bags, cartons, sheets, blocks, or similar packaging |
| Palletizing Efficiency | 500 cycles/hour (theoretical maximum) |
| Power Consumption | Robot Body 7.5kW; Shaping/Positioning Conveyor 1.5kWs 1.5kW |
| Pallet Size | ≤1400×1600mm (including actual stacking pattern) |
| Customizable | Cross Arm Length, Column Height, Specialized Gripping Tools |
| Upgradable | ision Recognition, Pallet Conveyor Integration, Ton Bag Lifting Mechanism, Anti-Collapse Interlocking Mechanism |
HFMR-200S
